Redford Ice Arena Clock Operation
Redford Hockey Score Clock

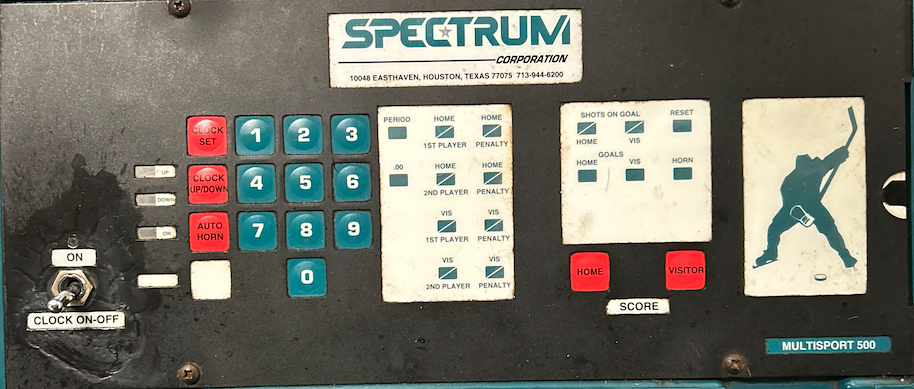

Functions of the Clock
To start the clock, turn the Clock On-Off switch to “On” and it will begin counting down. This can be done from the switch on the controller face or from the auxiliary hand-held switch if so equipped. The clock will count up or down but the system automatically defaults to down. This can be changed by pressing the Clock Up/Down. When using the auxiliary hand-held clock switch, the clock switch on the controller face must stay in the off position. To set or change the time on the clock, simply turn the clock off, enter the time and press Clock Set. This button is red and is located at the top left of the keypad.
To set or change the time on the clock, simply turn the clock off, enter the time and press Clock Set. This button is red and is located at the top left of the keypad.
Horn Features
To activate the automatic horn to blow when the clock reaches “0:00”, press Auto Horn. A red indicator light will come on to indicate that the horn is activated. You must turn the horn on if you want it to blow at 0:00. The horn will blow for two full seconds and turn itself off automatically. The Auto Horn light will stay on and the horn will blow again at 0:00 unless you turn it off by pressing Auto Horn a second time.
To activate a manual horn, press Horn when the clock is off and the horn will blow.
Keys:
Home Score – Increments the home score by 1 each time it is pressed or will add the number entered from the keypad to the score. If reset is pressed and then the Home Score key is pressed, this will blank the home score.
Visitor Score – Operates the same as the Home Score key.
Clock Set – Sets the clock to the time entered from the keypad.
Clock Up/Down – Changes direction clock counts.
Auto Horn – Sets horn to blow at 0.
Horn – Blows manual horn when clock is off.
Period – Counts 1 – 2 – 3 – 4 – 1 each time it is pressed.
Home Shots on Goal – Increments by one each time it is pressed.
Visitor Shots on Goal – Operates the same as Home Shots on Goal.
Reset – Used in conjunction with other keys such as score or penalties. Will reset back to zero or blank.
Home or VIS 1st Player (Penalty) – Enter the numbers from the keypad, press 1st Player. To clear to 0, press 1st Player again, to clear to blank press Reset then 1st Player. Or just enter the next number and press Player Number.
Home or VIS 1st Penalty – Default penalty time is 2:00. To change, enter the numbers from the keypad, press Penalty. To clear to 0, press Home Penalty again, to clear to blank press Reset then Home Penalty.
Home or VIS 2nd Player (Penalty) – Operates the same as Home or VIS 1st Player.
Home or VIS 2nd Penalty – Operates the same as Home or VIS 1st Penalty.
